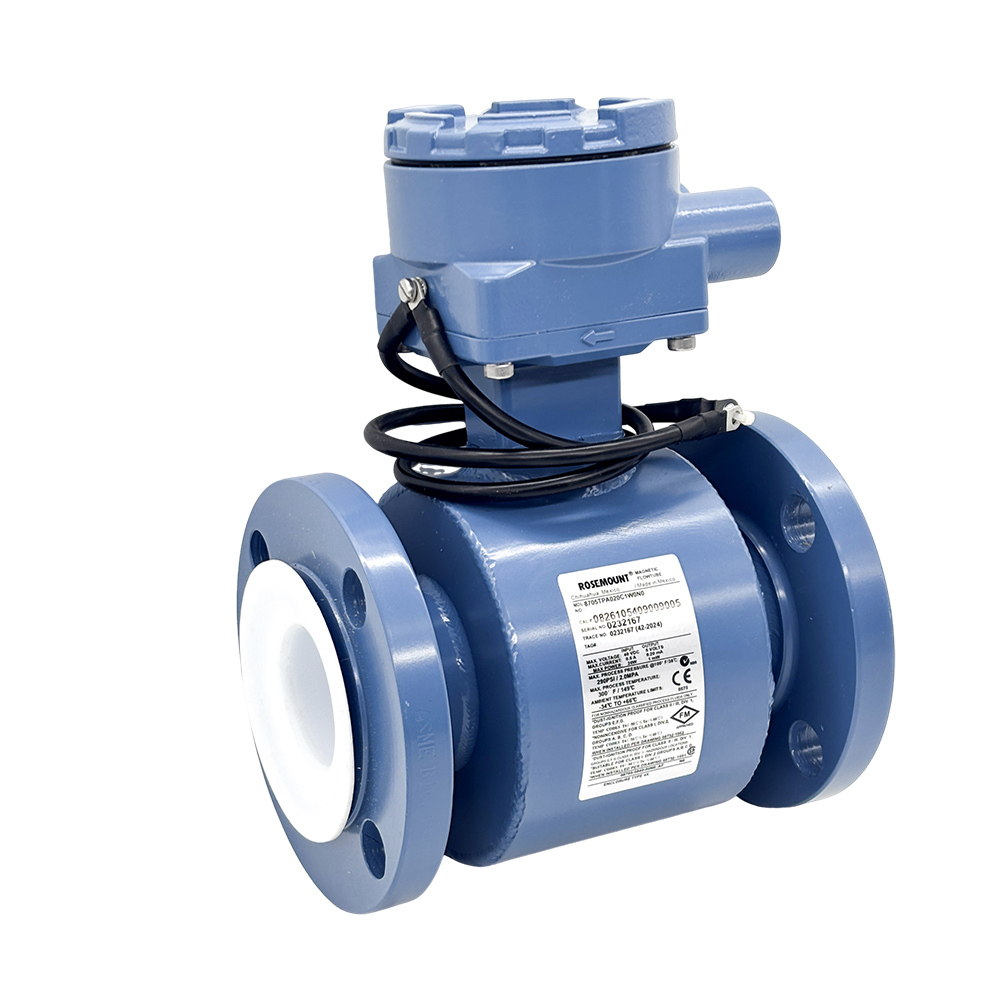

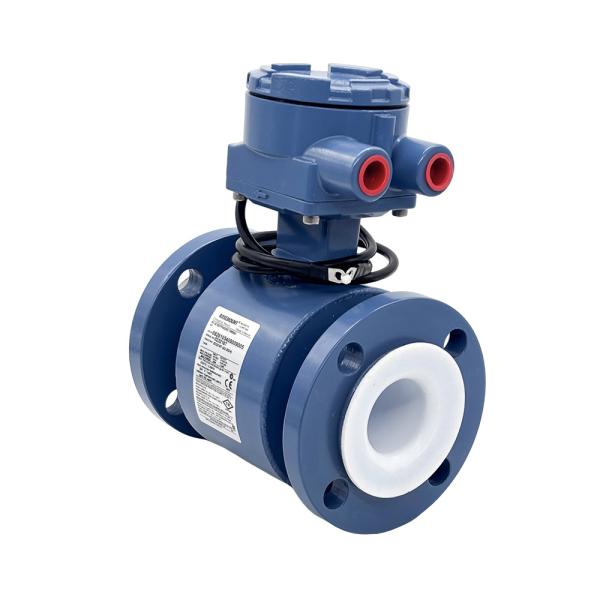

Rosemount 8700 Series Electromagnetic Flowmeter Magnetic Flow Meter

Brand Name : Rosemount

Model Number : 8705

Certification : Calibration certificate

Place of Origin : Singapore

MOQ : 1PC

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 100PCS/Month

Delivery Time : 5-8 work days

Packaging Details : Carton

Product Name : 8705 Flanged Magnetic Flow Meter

Warranty : 2 Years

Customized support : OEM, ODM, OBM

Accuracy : Up to 0.15%

type : Magnetic Flow Meter

material : Stainless Steel

Lining Material : PTFE, Polyurethane

Electrode Material : 316L Stainless Steel

Medium : Conductive Liquid

Power supply : 220VAC/ 24VDC

Communication : RS485/Modbus/HART

Liner size : (15-900 mm)

Protection : IP68

Application : Liquid Flow Measurement

Contact Now

Rosemount 8700 Series Electromagnetic Flowmeter Magnetic Flow Meter
Rosemount 8705 Flanged Magnetic Flow Meter Sensors provide long-lasting, reliable performance in even the most challenging applications. An all-welded construction provides a hermetic seal that protects against moisture and other contaminants. The sealed housing ensures maximum sensor reliability by protecting all internal components and wiring from even the most aggressive environments. A removable and replaceable terminal block enables easy repair in the field without the need to replace the entire meter.

Features
* For maximum protection, a fully welded sensor housing provides a hermetic seal
* Avoid process shutdown with a removable and replaceable terminal block that enables repairs in the field
* Capture any potential process fluid leakage with optional secondary containment compartments to surround electrodes
* Ensure reliability in the harshest environments with an all-welded sensor housing
* Guard against installation damage and leading-edge wear with an optional lining protector
* Minimize maintenance and repair with an obstructionless design featuring no moving parts

Specification
Product name
Rosemount 8700 Series Magnetic Flowmeter
Model
8705
Base accuracy
±0.15%
Line Sizes
½-36 inch (15-900 mm)
Liner Materials
PTFE, ETFE, PFA, Polyurethane, Neoprene
Electrode Materials
316L Stainless Steel, Nickel Alloy, Platinum, Tantalum, Titanium
Flange Ratings
ASME B16.5 Class 150-2500DIN PN 10-40AS 2129 Table D and EAWWA C207 Table 3 Class D (30-36 inch only)
Submergence Protection
IP68 (Recommended with sealed cable glands)

Details Images
Rosemount 8700 Series Electromagnetic Flowmeter Magnetic Flow Meter
